Coronary balloon angioplasty for severe biliary strictures: a novel endoscopic approach

Gholam Reza Sivandzadeh¹, Seyed Alireza Taghavi¹, Masoud Tahani², Fateme Sharafi², Iraj Shahramian¹

+ Affiliation
¹ Gastroenterohepatology Research Center, Shiraz University of Medical Sciences, Shiraz, Iran
² Pediatric Gastroenterology and Hepatology Research Center, Zabol University of Medical Sciences, Zabol, Iran

Summary

Keywords

Introduction

The utilization of coronary balloons for severe biliary strictures has emerged as a viable alternative in managing challenging cases, particularly when traditional methods fail. Recent studies highlight the effectiveness of various balloon types, including modified angioplasty and cardiac angioplasty balloons, in achieving successful dilation of strictures, leading to improved patient outcomes.

Building on this foundation, severe biliary strictures continue to challenge clinical practice, particularly during endoscopic retrograde cholangiopancreatography (ERCP). Conventional through-the-scope (TTS) biliary balloons, while effective for routine cases, frequently fail in tight or tortuous strictures. These limitations necessitate innovative alternatives.

Coronary angioplasty balloons, initially designed for vascular interventions, are increasingly recognized for their potential in navigating narrow, resistant biliary strictures. Their smaller diameter and high-pressure capabilities uniquely position them to overcome the challenges posed by tight strictures, making them particularly suitable in cases where traditional dilation fails [1–6].

This case series aims to evaluate the safety, feasibility, and clinical efficacy of coronary balloon angioplasty in patients with severe biliary strictures, highlighting its role as a viable alternative when standard approaches fail.

Case series

Patient demographics and clinical context

This study included six patients (five males and one female) aged 4 to 62 years (mean age 36.8 years), presenting with severe biliary strictures. The etiologies included chronic pancreatitis, post-liver transplantation strictures, primary sclerosing cholangitis (PSC), and complex pediatric cases. Although this case series includes a limited number of patients, it represents a diverse cohort with varying etiologies, providing insight into potential applications of this technique.



Detailed demographics are as follows:

• patient 1: 50-year-old male with chronic pancreatitis;
• patient 2: 62-year-old male with PSC and suspected cholangiocarcinoma;
• patient 3: 43-year-old male with post- -orthotopic liver transplantation (OLT) anastomotic stricture;
• patient 4: 4-year-old female with a post-partial OLT stricture;
• patient 5: 10-year-old male with hilar and common bile duct (CBD) strictures;
• patient 6: 52-year-old male with post- -OLT anastomotic stricture.

Procedural overview

All patients underwent ERCP under general anesthesia with anesthesiologist supervision. Coronary balloons (3–4 mm diameters) were employed when TTS biliary balloons (6–8 mm) failed to achieve adequate dilation. Following successful dilation, biliary stents were deployed to ensure long-term patency.

Individual cases:

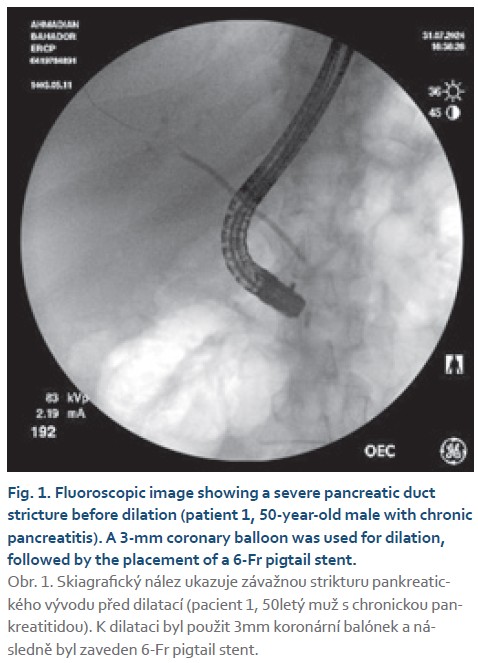

• patient 1: a tight pancreatic duct stricture was managed with a 3- mm coronary balloon, followed by a 6-Fr pigtail stent;

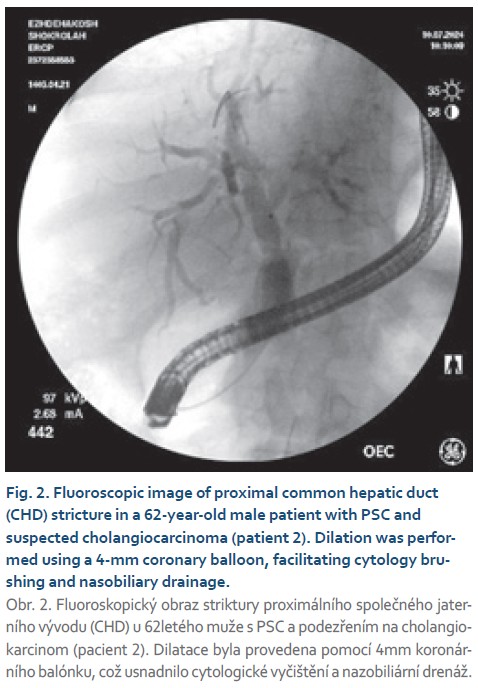

• patient 2: proximal hepatic duct dilation was achieved with a 4- mm coronary balloon, enabling brushing for cytology and nasobiliary drainage;
• patient 3: a post-OLT stricture was dilated using a 3- mm coronary balloon, allowing the placement of a 10- mm Kaffes stent;

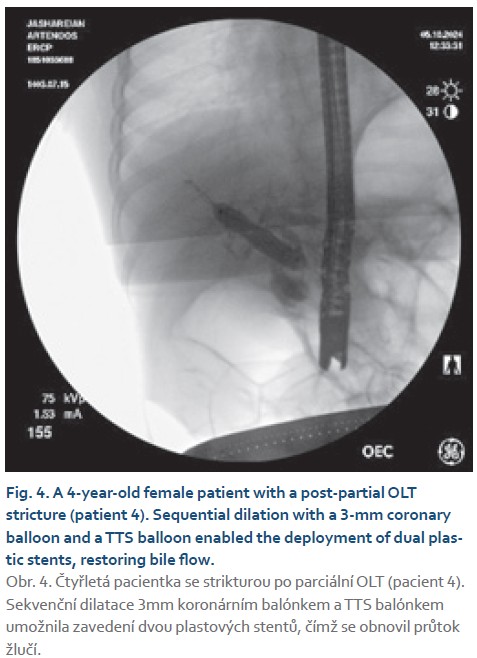

• patient 4: sequential dilation with coronary and TTS balloons enabled dual plastic stent deployment in this pediatric patient;

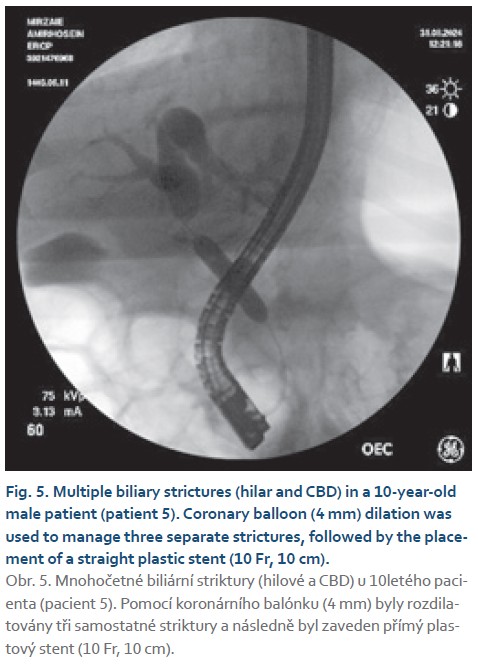

• patient 5: three separate hilar and CBD strictures were navigated with coronary balloons, followed by straight plastic stent placement;

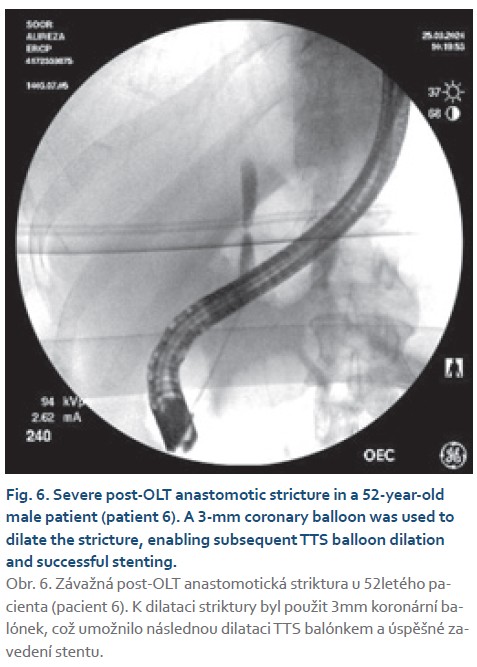

• patient 6: an anastomotic stricture post-OLT was effectively dilated using a coronary balloon, facilitating subsequent TTS balloon use and stenting.

Results

Utilization of coronary balloons resulted in 100% technical success, with complete restoration of bile flow in all six patients. Follow-up imaging at intervals of three to six months confirmed sustained biliary patency without significant complications. Notably, no procedure-related adverse events, such as perforation or hemorrhage, were reported.

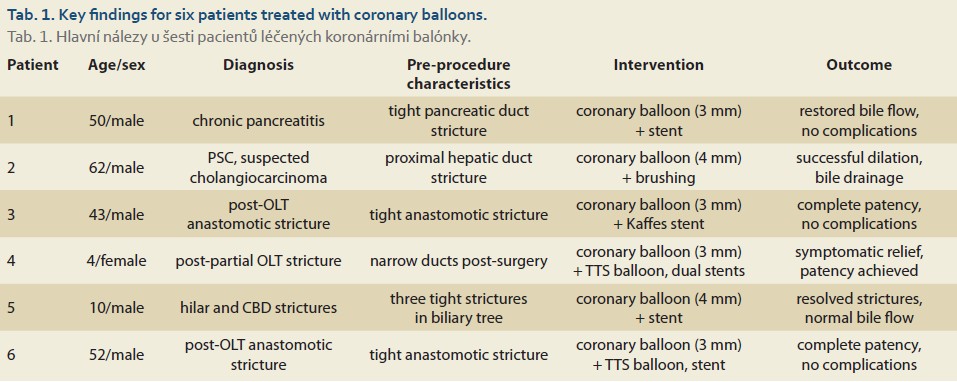

Tab. 1 summarizes the key findings, including pre-procedure characteristics, interventions, and outcomes.

Discussion

Coronary balloons, originally designed for cardiac interventions, have shown significant promise in the management of severe biliary strictures, particularly in cases where traditional ERCP tools are ineffective, such as primary sclerosing cholangitis (PSC). By utilizing small-caliber cardiac angioplasty balloons, these strictures can be effectively dilated, offering a novel and practical solution for challenging cases.

Mechanisms and clinical outcomes

Coronary balloons can alleviate severe biliary strictures through several mechanisms, primarily involving dilation and restoration of biliary flow. These balloons, originally designed for cardiac applications, have been adapted for endoscopic and percutaneous interventions in biliary strictures, demonstrating significant efficacy in various clinical scenarios.

Advantages of coronary balloons

• technical versatility: applicable across a wide range of stricture etiologies, including pediatric and complex post--surgical cases;
• high efficacy: achieved dilation in 100% of cases in this series;
• safety: no major complications were observed, even in high-risk patients.

Comparison with alternative techniques

While coronary balloons demonstrate unique advantages in managing tight biliary strictures, alternative techniques have also been explored. For instance, wire-guided diathermic dilators and ultra-slim metallic stents have shown success in managing severe malignant biliary strictures, particularly in patients with altered anatomy. Additionally, cutting balloons have been utilized as a rescue therapy for benign bilioenteric anastomotic strictures that are refractory to conventional balloon dilation, further underscoring the versatility of balloon-based interventions in biliary strictures.

However, the smaller diameter and high-pressure capabilities of coronary balloons make them uniquely suitable for cases where other methods fail, particularly in pediatric patients and tight anastomotic strictures, as highlighted in this case series.

Future directions

While the findings are promising, this case series is limited by its small sample size. Larger, multi-center studies are essential to validate these outcomes and explore long-term efficacy. Additionally, cost-effectiveness analyses could further support their integration into standard clinical practice. Studies have reported high technical success rates with minimal complications when using balloon dilation techniques, including coronary balloons, for biliary strictures. These methods have shown effectiveness in both benign and malignant cases, with reduced recurrence rates. However, it is essential to consider the specific clinical context, patient anatomy, and availability of specialized equipment. Further research and clinical trials are necessary to establish standardized protocols and assess the long-term efficacy and safety of these innovative techniques.

Conclusion

Coronary angioplasty balloons represent a valuable addition to the endoscopic armamentarium for managing severe biliary strictures. Their success in this case series demonstrates their potential to address limitations of conventional methods, particularly in challenging or refractory cases. These findings pave the way for broader adoption and further research into their role in complex endoscopic procedures. These results emphasize the need for continued innovation and exploration of coronary balloon applications in diverse biliary scenarios.

ORCID authors

G. R. Sivandzadeh 0000-0001-5461-5754,
S. A. Taghavi 0000-0002-3382-647X,
M. Tahani 0000-0002-0213-9087,
F. Sharafi 0009-0003-3425-1473,
I. Shahramian 0000-0002-3760-7717.

Submitted/Doručeno: 26. 2. 2025
Accepted/Přijato: 23. 5. 2025

Corresponding author
Prof. Iraj Shahramian, MD
Gastroenterohepatology Research Center
School of Medicine
Shiraz University of Medical Sciences
Namazi Sq.
71937-11351 Shiraz
Iran
Ir_buper@yahoo.com

To read this article in full, please register for free on this website.

Benefits for subscribers

Benefits for logged users

Literature

1. Simons-Linares CR, O’Shea R, Chahal P. Severe primary sclerosing cholangitis biliary stricture managed with a small-caliber cardiac angioplasty balloon: looking outside the endoscopic retrograde cholangiopancreatography toolbox. ACG Case Rep J 2019; 6(7): e00141. doi: 10.14309/crj.0000000000000141.
2. Li C, Gong J, Huang W et al. A novel technique of percutaneous transhepatic treatment of biliary-enteric anastomotic occlusive strictures with compliant balloon-occluded cholangiography and large-bore catheter: a retrospective case series. Quant Imaging Med Surg 2024; 14(5): 3572–3580. doi: 10.21037/qims-23-1693.
3. Kawakami H, Kubota Y, Ashizuka S et al. Balloon enteroscopy-assisted biliary drainage using a diathermic dilator followed by placement of a novel ultra-slim metallic stent. Endoscopy 2017; 49(Suppl 1): E78–E80. doi: 10.1055/ s-0042-124499.
4. Pereira GB, Gutierrez JP, D’Assuncao M et al. Utility of a stent pusher catheter as a “mini-overtube” in the endoscopic management of post-liver transplant biliary strictures. Endoscopy 2015; 47(Suppl 1): E587–E589. doi: 10.1055/s-0034-1393386.
5. Huszar O, Szijarto A, Tihanyi T et al. A novel percutaneous transhepatic treatment of a benign bile duct stricture – a pilot study. Croat Med J 2019; 60(5): 397–404. doi: 10.3325/cmj.2019.60.397.
6. Lee JH, Kim DU, Han SY et al. Use of a cutting balloon dilation as a rescue therapy in patients with benign bilioenteric anastomotic strictures refractory to conventional balloon dilation. Korean J Pancr Biliary Tract 2022; 27(3): 128–134. doi: 10.15279/kpba.2022.27.3.128.
